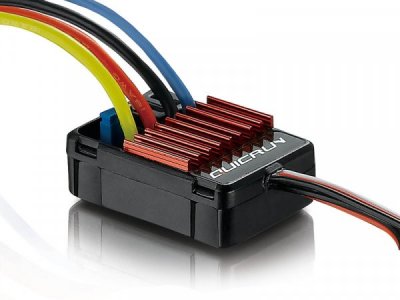

Hobbywing QuicRun 1625 Brusled Waterproof ESC - HW30120000

КОД: 30120000


Цена: 26.90

(с ДДС)
Няма наличност, Може да бъде доставен по заявка
1345 т.

Product details page tabs

The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.

Features

  1. Water-proof and dust-proof, suitable for all-weather condition races.
  2. Small size with built-in capacitor module.
  3. Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
  4. Great current endurance capability.
  5. Switch mode built-in BEC has powerful output.
  6. Automatic throttle range calibration, easy to use.
  7. Easy to set the ESC parameters with jumpers.
  8. Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.

Specifications

  • Fwd. Cont. / Peak Current: 25A / 100A
  • Rev. Cont. / Peak Current: 25A / 100A
  • Voltage Range: 2-3S Lipo or 5-9 NiMH
  • Cars: 1/18 & 1/16
  • Applicable:
    • Touring Car
    • Buggy
    • Short Course Truck
    • Monster
    • Truggy
  • Motor Limit:
    • 2S Lipo or 6 cells NiMH: 280, 370, 380 Size Motor: = RPM<30000 @7.2V
    • 3S Lipo or 9 cells  NiMH: 280, 370, 380 Size Motor: = RPM<20000 @7.2V
  • Resistance: Fwd 0.003O / Rev 0.003O
  • BEC Output: 1A/5V (Linear Mode)
  • PWM Frequency: 1KHz
  • Dimension / Weight: 34*24*14 / 23,5g
  • Cooling Fan: No


The battery type can be programmed by jumper.

  • Battery Type: Lipo / NiMH
